Linear Regression and Optimisation

Using linear regression to find the optimal value of an input

February 11, 2022

When I first learnt linear regression six years ago, I was surprised by its power. I could know the effect of one phenomenon on another and the extent of the relationship. As years passed by, I revisited its different parts in pieces. Stability. Consistency. Precision. R Squared. The list goes on.

Sometime in the past, I decided to compile all I had learnt about linear regression. However, such massive projects never see fruition.  In my MBA, Prof Amlesh Sharma from Texas A&M taught this in his Advanced Marketing Analytics class; I didn’t find this technique elsewhere. Using this simple trick, you can decide the optimal value for input to produce the maximum output.

Formulation

At its heart, linear regression is fitting a straight line in the existing data so that the line is closest to the points. We solve the optimisation problem to minimise the distance between the regression line and the actual observation. This approach is called “loss minimisation”. Another popular method is to “maximise likelihood”. Explanation of these methods is beyond the scope of this article.

Variables

Independent variables (X): Independent variables are assumed to be independent of each other and the cause of an effect.

Dependent variable (Y): Dependent variable is the final effect we try to estimate or predict.

Case Study: Number of Golf Courses

There is a strong theoretical reason to believe that the number of golf courses in a state would depend on climate, population, per capita income and popularity. Consider a simple case where you know only the people of the state and the number of golf courses in that state.

The linear model to find the number of gold courses can be written as the following.

$$ Y = \beta_0 + \beta_1X \varepsilon $$

\(Y\) is the number of golf courses in the state and \(X\) is population.

Is the relationship linear?

Let’s check it.

Data

Data on golf courses by US state is available at this website. I scrapped it into a .CSV file available here.

library(tidyverse)
## ── Attaching packages ─────────────────────────────────────── tidyverse 1.3.1 ──
## ✓ ggplot2 3.3.5          ✓ purrr   0.3.4
## ✓ tibble  3.1.6          ✓ dplyr   1.0.7.9000
## ✓ tidyr   1.1.4          ✓ stringr 1.4.0
## ✓ readr   2.0.2          ✓ forcats 0.5.1
## ── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
## x dplyr::filter() masks stats::filter()
## x dplyr::lag()    masks stats::lag()
theme_set(theme_h())

golf = read.csv("https://www.harsh17.in/using-linear-regression-to-find-optimal-value/data/golf.csv") %>% as_tibble()
golf
## # A tibble: 52 × 4
##    State          Location.quotient Establishments Employment
##    <chr>                      <dbl> <chr>          <chr>
##  1 U.S. Total                  1    11,088         306,782
##  2 Florida                     2.66 884            48,670
##  3 Hawaii                      2.5  57             3,491
##  4 South Carolina              2.1  256            9,094
##  5 Arizona                     1.58 168            9,417
##  6 Nevada                      1.39 83             3,959
##  7 North Carolina              1.35 402            12,496
##  8 Alabama                     1.14 150            4,670
##  9 Pennsylvania                1.13 551            13,975
## 10 Georgia                     1.1  279            10,279
## # … with 42 more rows

Population of each US state is available on this website. I downloaded the .CSV file available from there ( click here to download).

population = read.csv("https://www.harsh17.in/using-linear-regression-to-find-optimal-value/data/state_population.csv") %>% as_tibble()
population
## # A tibble: 52 × 9
##     rank State       Pop  Growth Pop2021 Pop2010 growthSince2010 Percent density
##    <int> <chr>     <int>   <dbl>   <int>   <int>           <dbl>   <dbl>   <dbl>
##  1     1 Califor… 3.97e7  0.0013  3.96e7  3.73e7          0.0628  0.118     255.
##  2     2 Texas    3.01e7  0.0124  2.97e7  2.52e7          0.192   0.0896    115.
##  3     3 Florida  2.22e7  0.0106  2.19e7  1.88e7          0.177   0.066     414.
##  4     4 New York 1.92e7 -0.004   1.93e7  1.94e7         -0.0091  0.0572    408.
##  5     5 Pennsyl… 1.28e7  0.0001  1.28e7  1.27e7          0.0074  0.0381    286.
##  6     6 Illinois 1.25e7 -0.0041  1.26e7  1.28e7         -0.0251  0.0372    225.
##  7     7 Ohio     1.17e7  0.0011  1.17e7  1.15e7          0.0163  0.0349    287.
##  8     8 Georgia  1.09e7  0.0098  1.08e7  9.71e6          0.126   0.0325    190.
##  9     9 North C… 1.08e7  0.0099  1.07e7  9.57e6          0.129   0.0322    222.
## 10    10 Michigan 1.00e7  0.0003  9.99e6  9.88e6          0.0119  0.0297    177.
## # … with 42 more rows

Note that there is a timeline mismatch. Golf course data is from 2017, and population data is from 2021. However, since the purpose of this article is to show linear regression-based optimisation and not an actual world application — it’s acceptable.

Wrangling Data

Let’s merge the two datasets and retain only the columns that we need.

# inner join
df = inner_join(golf, population)
## Joining, by = "State"
# retain only number of golf courses and population in 2021
df = df %>%
  select(State, Establishments, Pop2021)

# Establishments is in characters, so convert it to numeric
df$Establishments = as.numeric(df$Establishments)

Visualisation

Just out of curiosity, let’s see how number of golf courses are with respect to state population.

df %>%
  ggplot(aes(x = Pop2021, y = Establishments, colour = State, size = Pop2021)) +
  geom_point(alpha = 0.5, show.legend = FALSE)

So there is a straightforward pattern that as the population increases, the number of golf courses increases. However, the variance also increases with population. When the population is around 20 million, golf courses can be about 600 or 800. There will likely be heteroskedasticity problems because of dependent variance if we directly apply a linear model.

Optimisation

Imagine if I rewrite the linear model differently.

$$ Y = a + bX + cX^2 $$

\(Y\) is the number of golf courses and \(X\) is the population.

Then, I can calculate \(\frac{dY}{dX}\) as the following.

$$ \frac{dY}{dX} = b + 2cX $$

For the optimal value — minimum or maximum — we will set the first order condition to zero. Thus,

$$ X = \frac{-b}{2c}. $$

Whether it will give us minima or maxima will depend on sign of \(\frac{d^2Y}{dX^2} = 2c\), i.e. sign of \(c\). So, let’s first estimate the model and see what we get.

fit = lm(Establishments ~ Pop2021 + I(Pop2021^2), data = df)
summary(fit)
##
## Call:
## lm(formula = Establishments ~ Pop2021 + I(Pop2021^2), data = df)
##
## Residuals:
##      Min       1Q   Median       3Q      Max
## -154.203  -48.364    2.627   41.706  244.067
##
## Coefficients:
##                Estimate Std. Error t value Pr(>|t|)
## (Intercept)  -1.070e+01  2.219e+01  -0.482    0.632
## Pop2021       4.648e-05  4.580e-06  10.149 1.55e-13 ***
## I(Pop2021^2) -7.671e-13  1.328e-13  -5.778 5.46e-07 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 87.98 on 48 degrees of freedom
## Multiple R-squared:  0.8092,	Adjusted R-squared:  0.8013
## F-statistic: 101.8 on 2 and 48 DF,  p-value: < 2.2e-16

We see that \(c = -7.6 \times 10^{-13}\), which is negative. Thus, the value we get from \(X = \frac{-b}{2c}\) will be maximiser. At that population, we would have the maximum number of golf courses.

Let’s calculate that critical value.

cc = coef(fit)
print(unname(-cc[2]/(2*cc[3])))
## [1] 30296969
X = -cc[2]/(2*cc[3])

Thus, the population that maximises the number of golf courses is 30,296,969 — around thirty million.

How many golf courses we will have in that case?

(Y = cc %*% c(1, X, X^2))
##          [,1]
## [1,] 693.4493

It will have around 694 golf courses. This looks like a correct answer from the plot as well.

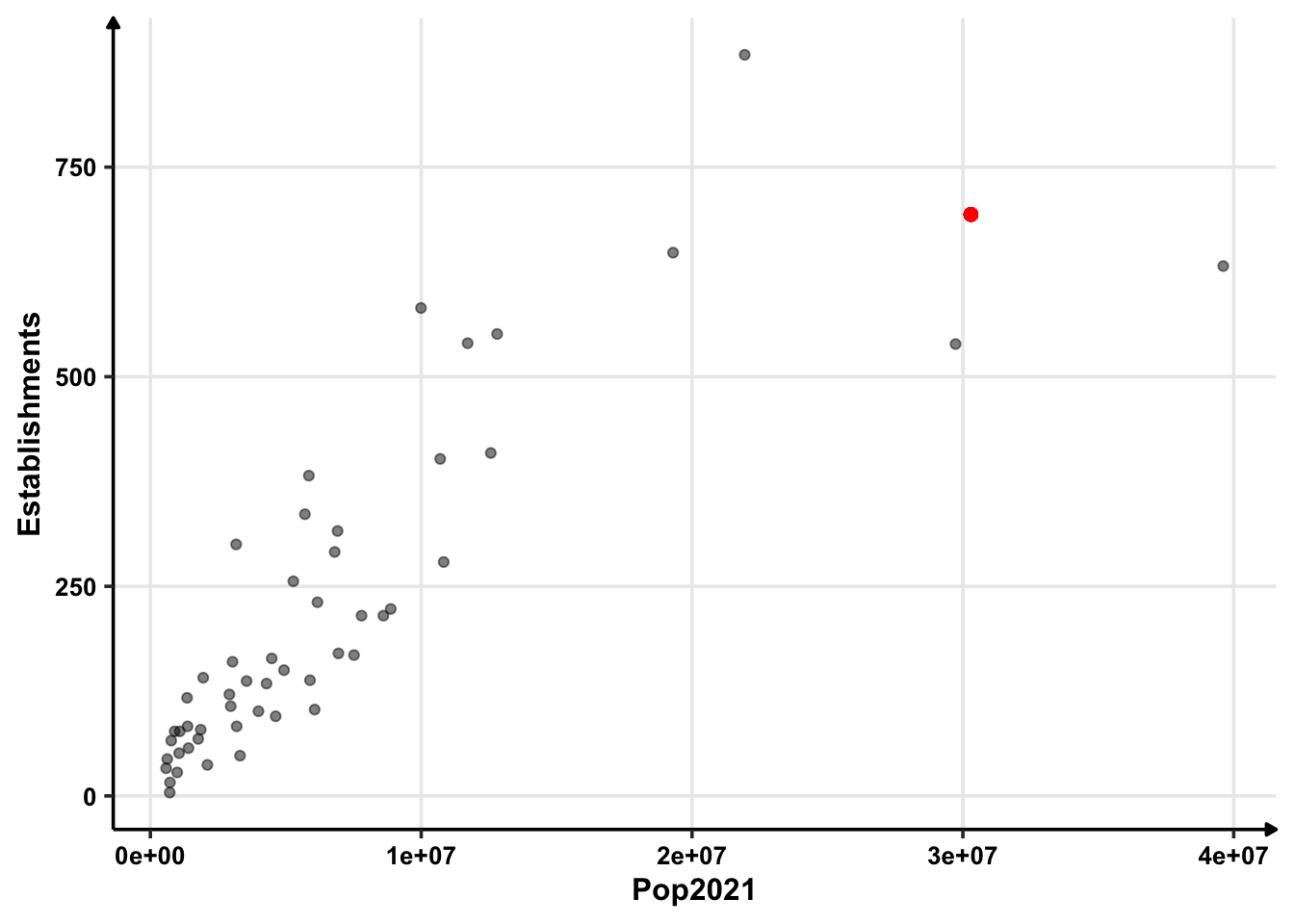

df %>%
  ggplot(aes(x = Pop2021, y = Establishments)) +
  geom_point(alpha = 0.5) +
  geom_point(aes(X, Y), colour = "red", size = 2)
