Classification: Logistic Regression and Random Forest

Using Tidymodels to Find Sex of Penguins

February 11, 2022

In this tutorial-cum-note, I will demonstrate how to use Logistic Regression and Random Forest algorithms to predict sex of a penguin. The data penguins comes from palmerpenguins package in R. It was collected by Dr. Kristen Gorman on three species of penguins at the Palmer Station, Antarctica LTER, a member of the  Long Term Ecological Research Network.

The goal is to build a classifier model that predicts sex of the penguins given its physical characteristics.

The dataset can be installed from CRAN.

# If you don't have palmerpenguins package, first install it.
# install.packages("palmerpenguins")

# Loading Libraries
library(tidyverse)
## ── Attaching packages ─────────────────────────────────────── tidyverse 1.3.1 ──
## ✓ ggplot2 3.3.5          ✓ purrr   0.3.4
## ✓ tibble  3.1.6          ✓ dplyr   1.0.7.9000
## ✓ tidyr   1.1.4          ✓ stringr 1.4.0
## ✓ readr   2.0.2          ✓ forcats 0.5.1
## ── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
## x dplyr::filter() masks stats::filter()
## x dplyr::lag()    masks stats::lag()
library(palmerpenguins)

# setting my personal theme
theme_set(theme_h())

# Loading data
data("penguins")
penguins
## # A tibble: 344 × 8
##    species island    bill_length_mm bill_depth_mm flipper_length_mm body_mass_g
##    <fct>   <fct>              <dbl>         <dbl>             <int>       <int>
##  1 Adelie  Torgersen           39.1          18.7               181        3750
##  2 Adelie  Torgersen           39.5          17.4               186        3800
##  3 Adelie  Torgersen           40.3          18                 195        3250
##  4 Adelie  Torgersen           NA            NA                  NA          NA
##  5 Adelie  Torgersen           36.7          19.3               193        3450
##  6 Adelie  Torgersen           39.3          20.6               190        3650
##  7 Adelie  Torgersen           38.9          17.8               181        3625
##  8 Adelie  Torgersen           39.2          19.6               195        4675
##  9 Adelie  Torgersen           34.1          18.1               193        3475
## 10 Adelie  Torgersen           42            20.2               190        4250
## # … with 334 more rows, and 2 more variables: sex <fct>, year <int>

We see that there are many missing instances. Let’s see how many of them are missing.

sum(is.na(penguins))
## [1] 19

So, nineteen entries are missing. Most likely, I will exclude them from the analysis at present but before that, I want to explore the data as it is.

Exploration

One of the best methods to do it is via count() from dplyr.

penguins %>%
   count(species)
## # A tibble: 3 × 2
##   species       n
##   <fct>     <int>
## 1 Adelie      152
## 2 Chinstrap    68
## 3 Gentoo      124
penguins %>%
   count(island)
## # A tibble: 3 × 2
##   island        n
##   <fct>     <int>
## 1 Biscoe      168
## 2 Dream       124
## 3 Torgersen    52
penguins %>%
   count(species, island)
## # A tibble: 5 × 3
##   species   island        n
##   <fct>     <fct>     <int>
## 1 Adelie    Biscoe       44
## 2 Adelie    Dream        56
## 3 Adelie    Torgersen    52
## 4 Chinstrap Dream        68
## 5 Gentoo    Biscoe      124
penguins %>%
   count(sex)
## # A tibble: 3 × 2
##   sex        n
##   <fct>  <int>
## 1 female   165
## 2 male     168
## 3 <NA>      11
penguins %>%
   count(year)
## # A tibble: 3 × 2
##    year     n
##   <int> <int>
## 1  2007   110
## 2  2008   114
## 3  2009   120

Cool. It looks pretty balanced.

penguins %>%
   filter(!is.na(sex)) %>%
   ggplot(aes(flipper_length_mm, bill_length_mm, colour = sex, size = body_mass_g)) +
   geom_point(alpha = 0.6) +
   facet_wrap(~species)

In general, there is significant difference between bill_length_mm for both the sexes. Also, bill length for Adelie is shorter than other two species — for moth the sexes.

There are also packages like DataExplorer that can aid in the process. For this simplistic case, I want to demonstrate how to create classification model, so I will ignore the process.

The dataset has missing values as I noted earlier. So, I will remove the observations with missing values. I also do not need year and island for my classification model — there is no logical reason why should they be affecting sex of a penguin.

penguins_df = penguins %>%
   filter(!is.na(sex)) %>%
   select(-year, -island)

Modelling

Let’s start by loading tidymodels and setting the seed for randomisation.

library(tidymodels)
## Registered S3 method overwritten by 'tune':
##   method                   from
##   required_pkgs.model_spec parsnip
## ── Attaching packages ────────────────────────────────────── tidymodels 0.1.4 ──
## ✓ broom        0.7.10     ✓ rsample      0.1.1
## ✓ dials        0.0.10     ✓ tune         0.1.6
## ✓ infer        1.0.0      ✓ workflows    0.2.4
## ✓ modeldata    0.1.1      ✓ workflowsets 0.1.0
## ✓ parsnip      0.1.7      ✓ yardstick    0.0.9
## ✓ recipes      0.1.17
## ── Conflicts ───────────────────────────────────────── tidymodels_conflicts() ──
## x scales::discard() masks purrr::discard()
## x dplyr::filter()   masks stats::filter()
## x recipes::fixed()  masks stringr::fixed()
## x dplyr::lag()      masks stats::lag()
## x yardstick::spec() masks readr::spec()
## x recipes::step()   masks stats::step()
## • Dig deeper into tidy modeling with R at https://www.tmwr.org
set.seed(1)

The first step of modelling is to create the training and testing split. Validation set will never be exposed to us during the modelling process. Once our final model is made, we can test it against the validation set.

In Tidy Models, this split is created using initial_split function. I also have the option to stratify the split — which is necessary because we have multiple species and they are unbalanced. We only have 68 Chinstrap penguins but have 152 Adelie and 124 Gentoo. Let’s explore the help file for initial_split too.

?initial_split

# Specify the split
penguins_split = initial_split(penguins_df, strata = sex)

The proportion is set by default to 75% in training and 25% in testing. The functions training() and testing() will give me the resulting datasets.

penguins_train = training(penguins_split)
penguins_test = testing(penguins_split)

penguins_train
## # A tibble: 249 × 6
##    species bill_length_mm bill_depth_mm flipper_length_mm body_mass_g sex
##    <fct>            <dbl>         <dbl>             <int>       <int> <fct>
##  1 Adelie            39.5          17.4               186        3800 female
##  2 Adelie            40.3          18                 195        3250 female
##  3 Adelie            36.7          19.3               193        3450 female
##  4 Adelie            36.6          17.8               185        3700 female
##  5 Adelie            38.7          19                 195        3450 female
##  6 Adelie            35.9          19.2               189        3800 female
##  7 Adelie            37.9          18.6               172        3150 female
##  8 Adelie            39.5          16.7               178        3250 female
##  9 Adelie            39.5          17.8               188        3300 female
## 10 Adelie            42.2          18.5               180        3550 female
## # … with 239 more rows
penguins_test
## # A tibble: 84 × 6
##    species bill_length_mm bill_depth_mm flipper_length_mm body_mass_g sex
##    <fct>            <dbl>         <dbl>             <int>       <int> <fct>
##  1 Adelie            38.9          17.8               181        3625 female
##  2 Adelie            39.2          19.6               195        4675 male
##  3 Adelie            41.1          17.6               182        3200 female
##  4 Adelie            34.4          18.4               184        3325 female
##  5 Adelie            46            21.5               194        4200 male
##  6 Adelie            37.8          18.3               174        3400 female
##  7 Adelie            37.7          18.7               180        3600 male
##  8 Adelie            35.3          18.9               187        3800 female
##  9 Adelie            40.6          18.6               183        3550 male
## 10 Adelie            40.5          17.9               187        3200 female
## # … with 74 more rows

The datasets looks good; our split worked well.

Bootstrapping Samples

Note that our training sample has only 249 rows. This is not a huge dataset and we are not sure if the model we will make from this will be generalisable.

One simple way to solve this is using Bootstrapped samples. Each bootstrap sample is of original sample size but is also different from each other. They are collected sample of observations with replacement. Again, see the help file to understand the function.

?bootstraps

penguins_boot = bootstraps(penguins_train)
penguins_boot
## # Bootstrap sampling
## # A tibble: 25 × 2
##    splits           id
##    <list>           <chr>
##  1 <split [249/85]> Bootstrap01
##  2 <split [249/93]> Bootstrap02
##  3 <split [249/85]> Bootstrap03
##  4 <split [249/93]> Bootstrap04
##  5 <split [249/84]> Bootstrap05
##  6 <split [249/87]> Bootstrap06
##  7 <split [249/88]> Bootstrap07
##  8 <split [249/92]> Bootstrap08
##  9 <split [249/93]> Bootstrap09
## 10 <split [249/86]> Bootstrap10
## # … with 15 more rows

So, we have 25 bootstrapped samples each with different resamples. Of course, if you have enough data or are confident enough about your data, you can skip this step.

Logistic Regression Pipeline

Logistic regression model is one of the simplest classification model. It is also the basic building block of neural networks; it dictates how a node behaves. Until 2010 when neural networks and support vector machines gained popularity, logistic regression was the model in force.

Even today, the model is widely used in variety of real world applications. The biggest benefit of logistic regression models is its ability to explain and linear implementation.

The first step will be to set up model pipeline. This only sets up how the model would work and neither training or test has happened yet.

# Simple Logistic Regression
glm_spec = logistic_reg() %>%
   set_engine("glm")

glm_spec
## Logistic Regression Model Specification (classification)
##
## Computational engine: glm

There are other alternatives too. We can use Lasso regression (yes, Lasso can be used for classification as well. It “estimate[s] the parameters of the binomial GLM by optimising the binomial likelihood whilst imposing the lasso penalty on the parameter estimates”.) Or we can just use a regularised classification model.

# regularised regression
glm_spec = logistic_reg() %>%
   set_engine("glmnet")

# LASSO regression
glm_spec = logistic_reg(mixture = 1) %>%
   set_engine("glmnet")

But for this simple tutorial, I will stick to simple logistic regression model.

# Simple Logistic Regression
glm_spec = logistic_reg() %>%
   set_engine("glm")

Random Forest Pipeline

Let’s set up a pipeline for random forest model as well. The good part about random forest model is that they do not require huge tuning efforts like neural networks.

Random forest models can be used for classification as well as regression. Furthermore, there are many implementations (packages) in R to choose from. randomForest is probably the most known one. ranger is a fast implementation of random forest models in R. I will use ranger for this model.

# Engine could be spark
rand_forest() %>%
   set_mode("classification") %>%
   set_engine("spark")
## Random Forest Model Specification (classification)
##
## Computational engine: spark
# Or it could be randomForest
rand_forest() %>%
   set_mode("classification") %>%
   set_engine("randomForest")
## Random Forest Model Specification (classification)
##
## Computational engine: randomForest
# Or ranger
rf_spec = rand_forest() %>%
   set_mode("classification") %>%
   set_engine("ranger")
rf_spec
## Random Forest Model Specification (classification)
##
## Computational engine: ranger

Workflow

The next step in modelling pipeline is setting up the model with formula, model and data — in that order. Because I have multiple models that I want to compare, I will only set up formula in my workflow.

penguin_wf = workflow() %>%
   add_formula(sex ~ .)
penguin_wf
## ══ Workflow ════════════════════════════════════════════════════════════════════
## Preprocessor: Formula
## Model: None
##
## ── Preprocessor ────────────────────────────────────────────────────────────────
## sex ~ .

As it is seen, there is no model set yet.

Training Logistic Regression

Let’s add logistic regression model. I can fit it directly to the training sample.

penguin_wf %>%
   add_model(glm_spec) %>%
   fit(data = penguins_train)
## ══ Workflow [trained] ══════════════════════════════════════════════════════════
## Preprocessor: Formula
## Model: logistic_reg()
##
## ── Preprocessor ────────────────────────────────────────────────────────────────
## sex ~ .
##
## ── Model ───────────────────────────────────────────────────────────────────────
##
## Call:  stats::glm(formula = ..y ~ ., family = stats::binomial, data = data)
##
## Coefficients:
##       (Intercept)   speciesChinstrap      speciesGentoo     bill_length_mm
##        -95.852333          -6.932255          -8.535185           0.633832
##     bill_depth_mm  flipper_length_mm        body_mass_g
##          2.014378           0.056401           0.006365
##
## Degrees of Freedom: 248 Total (i.e. Null);  242 Residual
## Null Deviance:	    345.2
## Residual Deviance: 85.49 	AIC: 99.49

I get the coefficients and other detains for my model which is great.

However, as I said before I can’t be absolutely sure of my model right away because of small sample. So, I will use bootstrapped samples that I created earlier. verbose = T will show me all steps.

glm_rs = penguin_wf %>%
   add_model(glm_spec) %>%
   fit_resamples(resamples = penguins_boot,
                 control = control_resamples(save_pred = TRUE, verbose = F))
## ! Bootstrap12: preprocessor 1/1, model 1/1: glm.fit: fitted probabilities numerically 0...
glm_rs
## Warning: This tuning result has notes. Example notes on model fitting include:
## preprocessor 1/1, model 1/1: glm.fit: fitted probabilities numerically 0 or 1 occurred
## # Resampling results
## # Bootstrap sampling
## # A tibble: 25 × 5
##    splits           id          .metrics         .notes           .predictions
##    <list>           <chr>       <list>           <list>           <list>
##  1 <split [249/85]> Bootstrap01 <tibble [2 × 4]> <tibble [0 × 1]> <tibble [85 ×…
##  2 <split [249/93]> Bootstrap02 <tibble [2 × 4]> <tibble [0 × 1]> <tibble [93 ×…
##  3 <split [249/85]> Bootstrap03 <tibble [2 × 4]> <tibble [0 × 1]> <tibble [85 ×…
##  4 <split [249/93]> Bootstrap04 <tibble [2 × 4]> <tibble [0 × 1]> <tibble [93 ×…
##  5 <split [249/84]> Bootstrap05 <tibble [2 × 4]> <tibble [0 × 1]> <tibble [84 ×…
##  6 <split [249/87]> Bootstrap06 <tibble [2 × 4]> <tibble [0 × 1]> <tibble [87 ×…
##  7 <split [249/88]> Bootstrap07 <tibble [2 × 4]> <tibble [0 × 1]> <tibble [88 ×…
##  8 <split [249/92]> Bootstrap08 <tibble [2 × 4]> <tibble [0 × 1]> <tibble [92 ×…
##  9 <split [249/93]> Bootstrap09 <tibble [2 × 4]> <tibble [0 × 1]> <tibble [93 ×…
## 10 <split [249/86]> Bootstrap10 <tibble [2 × 4]> <tibble [0 × 1]> <tibble [86 ×…
## # … with 15 more rows

One bootstrapped sample had sampling issues (they training labels were unbalanced). To solve this, I could have specified strata = sex in bootstraps(). In this case it is acceptable because 24 of them worked well.

Training Random Forest

The process is almost the same as that for logistic regression.

rf_rs = penguin_wf %>%
   add_model(rf_spec) %>%
   fit_resamples(resamples = penguins_boot,
                 control = control_resamples(save_pred = TRUE, verbose = F))

rf_rs
## # Resampling results
## # Bootstrap sampling
## # A tibble: 25 × 5
##    splits           id          .metrics         .notes           .predictions
##    <list>           <chr>       <list>           <list>           <list>
##  1 <split [249/85]> Bootstrap01 <tibble [2 × 4]> <tibble [0 × 1]> <tibble [85 ×…
##  2 <split [249/93]> Bootstrap02 <tibble [2 × 4]> <tibble [0 × 1]> <tibble [93 ×…
##  3 <split [249/85]> Bootstrap03 <tibble [2 × 4]> <tibble [0 × 1]> <tibble [85 ×…
##  4 <split [249/93]> Bootstrap04 <tibble [2 × 4]> <tibble [0 × 1]> <tibble [93 ×…
##  5 <split [249/84]> Bootstrap05 <tibble [2 × 4]> <tibble [0 × 1]> <tibble [84 ×…
##  6 <split [249/87]> Bootstrap06 <tibble [2 × 4]> <tibble [0 × 1]> <tibble [87 ×…
##  7 <split [249/88]> Bootstrap07 <tibble [2 × 4]> <tibble [0 × 1]> <tibble [88 ×…
##  8 <split [249/92]> Bootstrap08 <tibble [2 × 4]> <tibble [0 × 1]> <tibble [92 ×…
##  9 <split [249/93]> Bootstrap09 <tibble [2 × 4]> <tibble [0 × 1]> <tibble [93 ×…
## 10 <split [249/86]> Bootstrap10 <tibble [2 × 4]> <tibble [0 × 1]> <tibble [86 ×…
## # … with 15 more rows

Notice that I did not get the same warning in random forest model. Why? Because random forest is not probabilistic in nature. Tree based models do not necessitate presence of balanced samples. They will simply give biased results and it is up to the researcher to investigate the flaws. That’s why they are little tricky.

Evaluation

How well do they compare against each other? The metrics to compare can be obtained using collect_metrics().

Logistic Regression Metrics

collect_metrics(glm_rs)
## # A tibble: 2 × 6
##   .metric  .estimator  mean     n std_err .config
##   <chr>    <chr>      <dbl> <int>   <dbl> <chr>
## 1 accuracy binary     0.905    25 0.00695 Preprocessor1_Model1
## 2 roc_auc  binary     0.971    25 0.00291 Preprocessor1_Model1

Random Forest Metrics

collect_metrics(rf_rs)
## # A tibble: 2 × 6
##   .metric  .estimator  mean     n std_err .config
##   <chr>    <chr>      <dbl> <int>   <dbl> <chr>
## 1 accuracy binary     0.900    25 0.00613 Preprocessor1_Model1
## 2 roc_auc  binary     0.970    25 0.00272 Preprocessor1_Model1

Logistic regression performs slightly better in both metrics: accuracy and AUC. Even if they were nearly equal and I had to choose, I would choose linear model. It is faster to implement, scalable and most importantly explainable.

Predictions

The predictions can be found using collect_predictions() function.

glm_rs %>%
  collect_predictions()
## # A tibble: 2,250 × 7
##    id          .pred_female .pred_male  .row .pred_class sex    .config
##    <chr>              <dbl>      <dbl> <int> <fct>       <fct>  <chr>
##  1 Bootstrap01       0.580  0.420          6 female      female Preprocessor1_M…
##  2 Bootstrap01       0.987  0.0125         7 female      female Preprocessor1_M…
##  3 Bootstrap01       0.978  0.0219         9 female      female Preprocessor1_M…
##  4 Bootstrap01       0.0277 0.972         10 male        female Preprocessor1_M…
##  5 Bootstrap01       0.842  0.158         11 female      female Preprocessor1_M…
##  6 Bootstrap01       1.00   0.000350      12 female      female Preprocessor1_M…
##  7 Bootstrap01       0.999  0.000525      13 female      female Preprocessor1_M…
##  8 Bootstrap01       1.00   0.00000806    14 female      female Preprocessor1_M…
##  9 Bootstrap01       0.918  0.0824        16 female      female Preprocessor1_M…
## 10 Bootstrap01       0.966  0.0341        19 female      female Preprocessor1_M…
## # … with 2,240 more rows

The two important columns in this are .pred_female and .pred_male. This is the probability that they belong to a particular class. .pred_class gives the class that our model predicts a penguin to be in; sex is their true class.

Confusion Matrix

conf_mat_resampled() with no arguments gives confusion matrix in tidy format.

glm_rs %>%
  conf_mat_resampled()
## # A tibble: 4 × 3
##   Prediction Truth   Freq
##   <fct>      <fct>  <dbl>
## 1 female     female 39
## 2 female     male    4.04
## 3 male       female  4.44
## 4 male       male   42.5

Let’s see it in conventional format.

glm_rs %>%
  collect_predictions() %>%
  conf_mat(sex, .pred_class)
##           Truth
## Prediction female male
##     female    975  101
##     male      111 1063

The model looks pretty good.

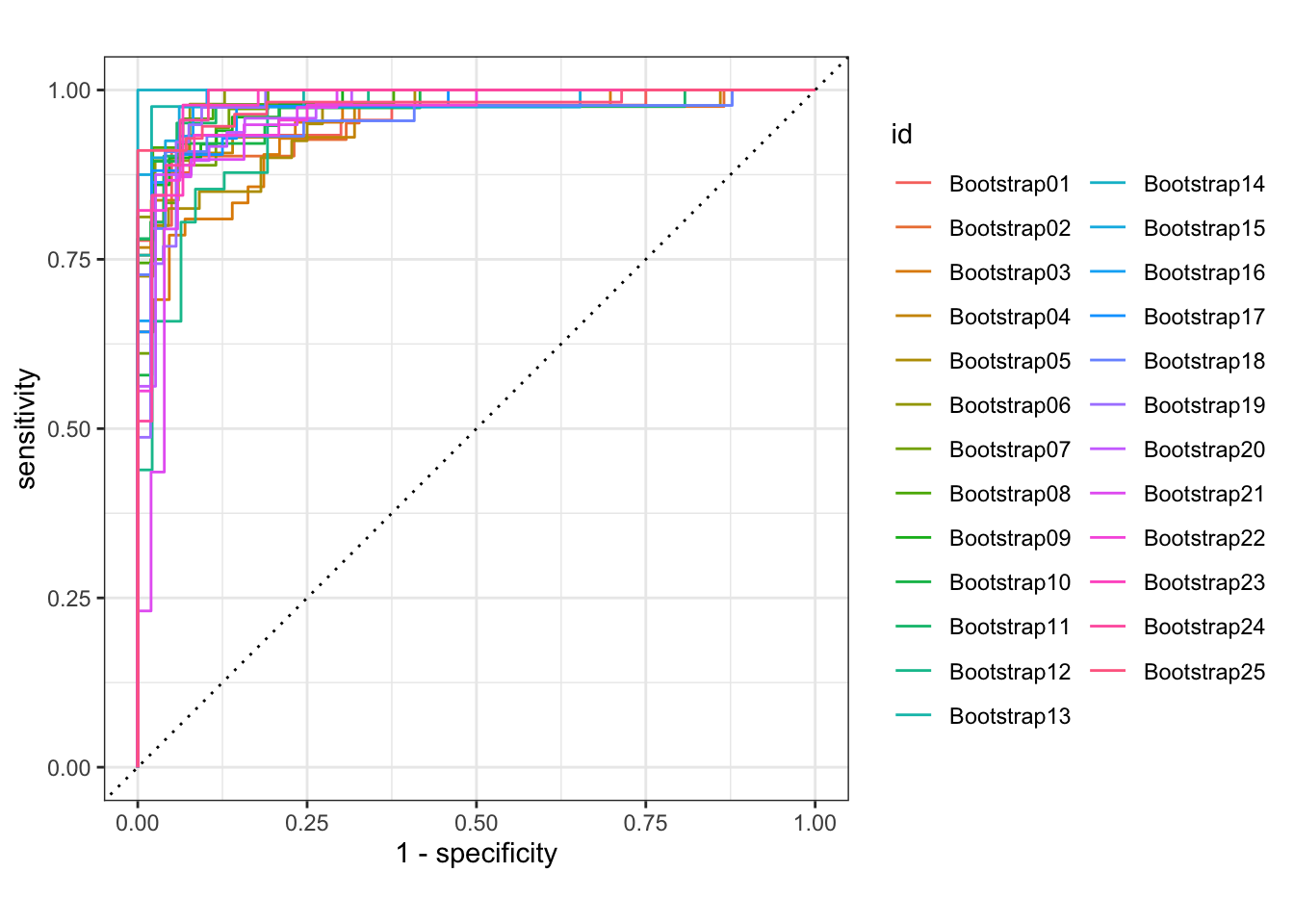

ROC Curve

The ROC curve can be produced by roc_curve() function. autoplot() uses default settings.

glm_rs %>%
   collect_predictions() %>%
   group_by(id) %>% # -- to get 25 ROC curves, for each bootstrapped sample
   roc_curve(sex, .pred_female) %>%
   autoplot()

How does autoplot() work?

glm_rs %>%
   collect_predictions() %>%
   group_by(id) %>% # -- to get 25 ROC curves, for each bootstrapped sample
   roc_curve(sex, .pred_female)
## # A tibble: 2,296 × 4
## # Groups:   id [25]
##    id           .threshold specificity sensitivity
##    <chr>             <dbl>       <dbl>       <dbl>
##  1 Bootstrap01 -Inf              0               1
##  2 Bootstrap01    6.67e-10       0               1
##  3 Bootstrap01    7.64e- 8       0.025           1
##  4 Bootstrap01    8.21e- 8       0.05            1
##  5 Bootstrap01    1.28e- 7       0.075           1
##  6 Bootstrap01    1.58e- 7       0.1             1
##  7 Bootstrap01    3.33e- 6       0.125           1
##  8 Bootstrap01    1.42e- 5       0.15            1
##  9 Bootstrap01    1.49e- 5       0.175           1
## 10 Bootstrap01    2.19e- 5       0.2             1
## # … with 2,286 more rows

Let’s beautify our ROC curve.

glm_rs %>%
   collect_predictions() %>%
   group_by(id) %>% # -- to get 25 ROC curves, for each bootstrapped sample
   roc_curve(sex, .pred_female) %>%
   ggplot(aes(1 - specificity, sensitivity, col = id)) +
   geom_abline(lty = 2, colour = "grey80", size = 1.5) +
   geom_path(show.legend = FALSE, alpha = 0.6, size = 1.2) +
   coord_equal()

I’m using geom_path instead of geom_line because I want to see discrete jumps. geom_line would give me a continious plot as it connects the points in the order of the variable on the x-axis. Another option is geom_step which only highlights changes — when a variable steps to take another value.

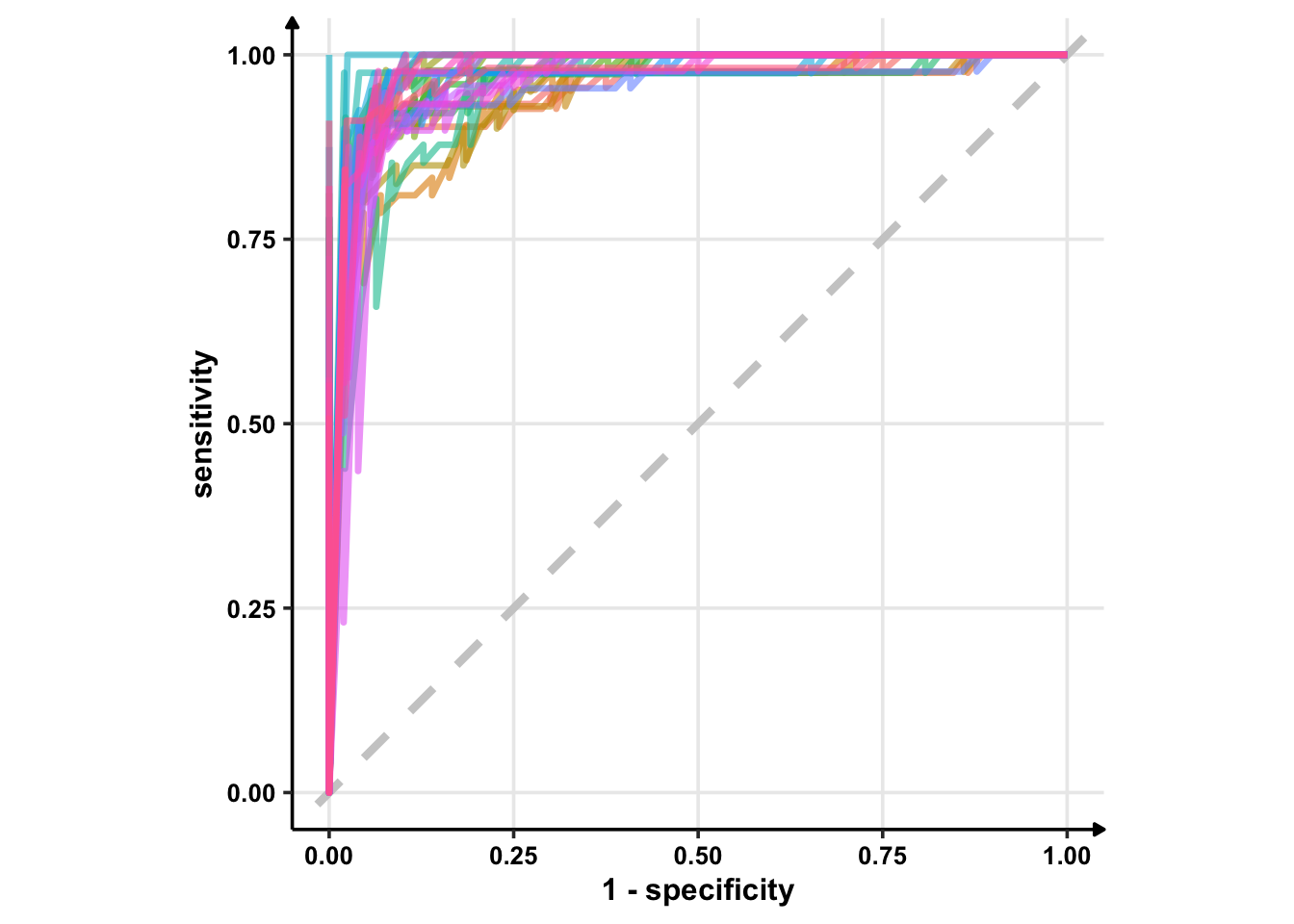

# Using geom_line()
glm_rs %>%
   collect_predictions() %>%
   group_by(id) %>% # -- to get 25 ROC curves, for each bootstrapped sample
   roc_curve(sex, .pred_female) %>%
   ggplot(aes(1 - specificity, sensitivity, col = id)) +
   geom_abline(lty = 2, colour = "grey80", size = 1.5) +
   geom_line(show.legend = FALSE, alpha = 0.6, size = 1.2) +
   coord_equal()

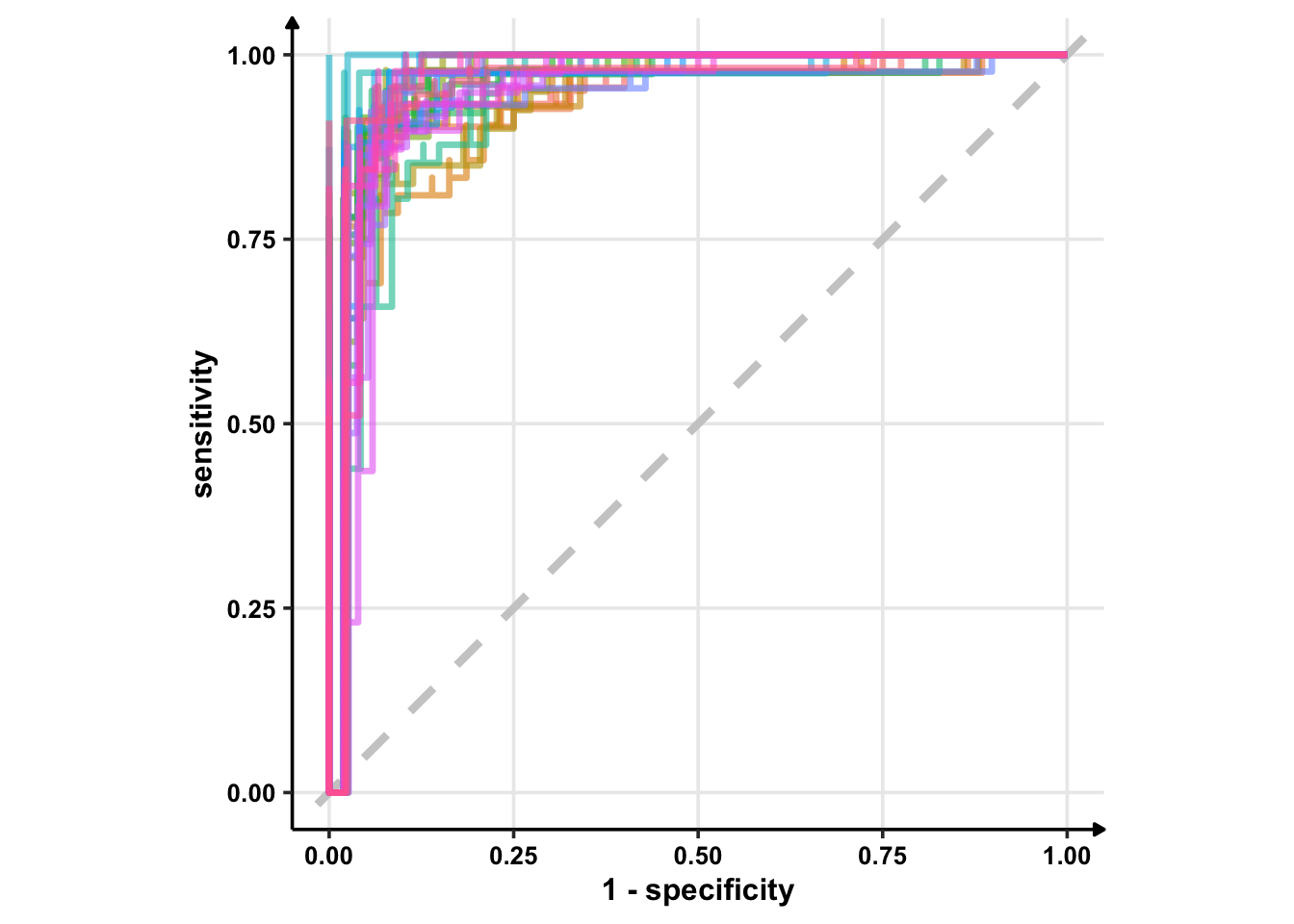

# Using geom_step()
glm_rs %>%
   collect_predictions() %>%
   group_by(id) %>% # -- to get 25 ROC curves, for each bootstrapped sample
   roc_curve(sex, .pred_female) %>%
   ggplot(aes(1 - specificity, sensitivity, col = id)) +
   geom_abline(lty = 2, colour = "grey80", size = 1.5) +
   geom_step(show.legend = FALSE, alpha = 0.6, size = 1.2) +
   coord_equal()

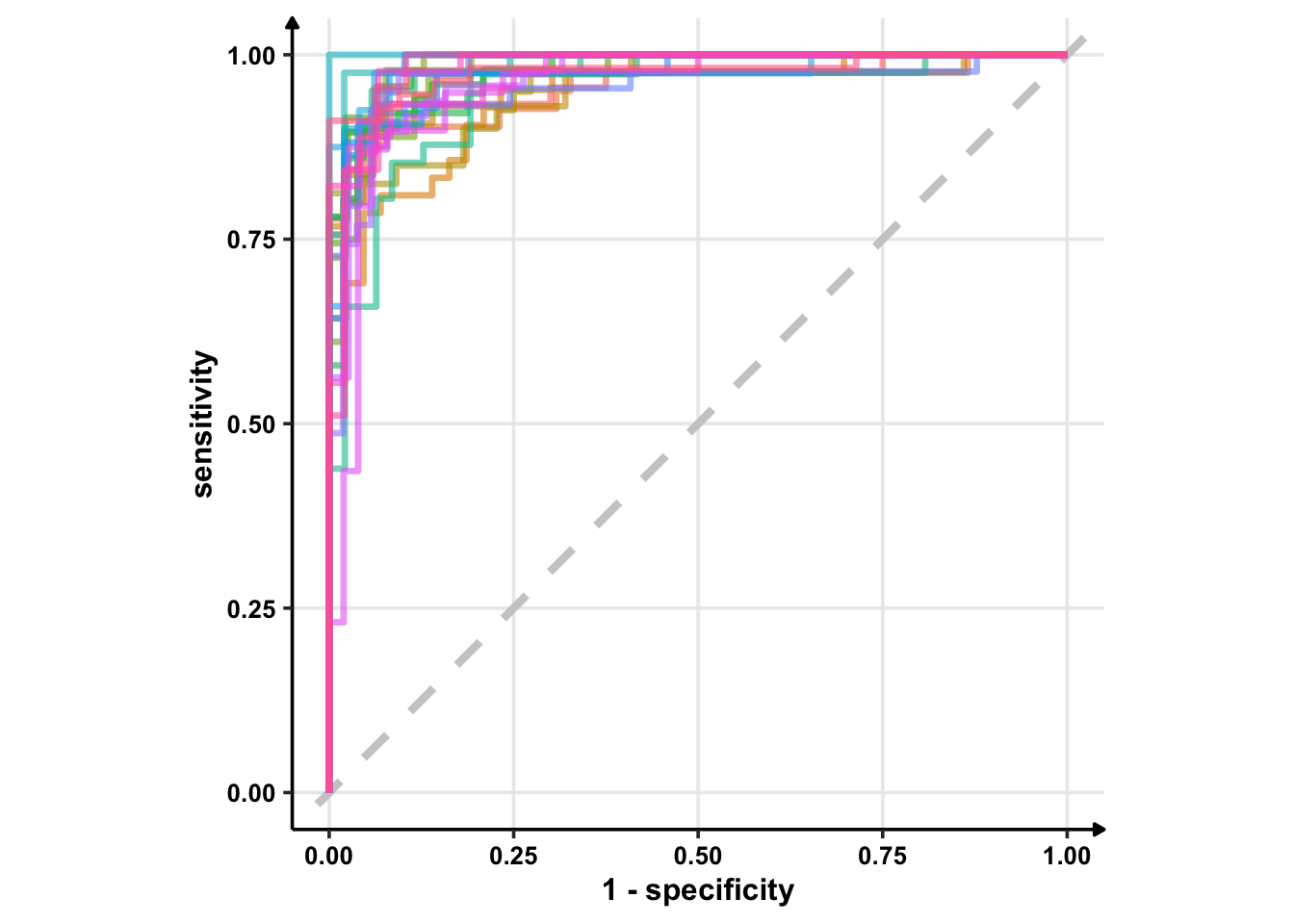

geom_abline() can take two arguments: intercept and slope. If you provide none of these, it plots \(y = x\). So, the best plot is from geom_path().

glm_rs %>%
   collect_predictions() %>%
   group_by(id) %>% # -- to get 25 ROC curves, for each bootstrapped sample
   roc_curve(sex, .pred_female) %>%
   ggplot(aes(1 - specificity, sensitivity, col = id)) +
   geom_abline(lty = 2, colour = "grey80", size = 1.5) +
   geom_path(show.legend = FALSE, alpha = 0.6, size = 1.2) +
   coord_equal()

Okay, enough on ggplot2. From the above ROC curves, we can deduce the model is doing great for the training samples.

Testing Samples

The above metrics used only the test data. We need to check our model’s performance on test dataset too.

Let’s fit the model using last_fit(). last_fit() fits the final best model to the training set and evaluates the test set.

penguins_final = penguin_wf %>%
  add_model(glm_spec) %>%
  last_fit(penguins_split)

penguins_final
## # Resampling results
## # Manual resampling
## # A tibble: 1 × 6
##   splits           id               .metrics   .notes    .predictions  .workflow
##   <list>           <chr>            <list>     <list>    <list>        <list>
## 1 <split [249/84]> train/test split <tibble [… <tibble … <tibble [84 … <workflo…

Let’s check how good our final model is.

penguins_final %>%
  collect_metrics()
## # A tibble: 2 × 4
##   .metric  .estimator .estimate .config
##   <chr>    <chr>          <dbl> <chr>
## 1 accuracy binary         0.905 Preprocessor1_Model1
## 2 roc_auc  binary         0.966 Preprocessor1_Model1
penguins_final %>%
  collect_predictions()
## # A tibble: 84 × 7
##    id               .pred_female .pred_male  .row .pred_class sex    .config
##    <chr>                   <dbl>      <dbl> <int> <fct>       <fct>  <chr>
##  1 train/test split  0.887          0.113       6 female      female Preprocess…
##  2 train/test split  0.0000979      1.00        7 male        male   Preprocess…
##  3 train/test split  0.976          0.0238      8 female      female Preprocess…
##  4 train/test split  0.996          0.00431    14 female      female Preprocess…
##  5 train/test split  0.000000623    1.00       15 male        male   Preprocess…
##  6 train/test split  0.973          0.0273     16 female      female Preprocess…
##  7 train/test split  0.772          0.228      17 female      male   Preprocess…
##  8 train/test split  0.662          0.338      21 female      female Preprocess…
##  9 train/test split  0.434          0.566      22 male        male   Preprocess…
## 10 train/test split  0.961          0.0388     23 female      female Preprocess…
## # … with 74 more rows

Our model is 90.5% accurate and has AUC of 0.966. These are very high accuracies.

Confusion Matrix for Test Set

penguins_final %>%
  collect_predictions() %>%
  conf_mat(sex, .pred_class)
##           Truth
## Prediction female male
##     female     39    5
##     male        3   37

This does pretty good to be honest.

Final Workflow

Let’s see the final model.

penguins_final$.workflow[[1]]
## ══ Workflow [trained] ══════════════════════════════════════════════════════════
## Preprocessor: Formula
## Model: logistic_reg()
##
## ── Preprocessor ────────────────────────────────────────────────────────────────
## sex ~ .
##
## ── Model ───────────────────────────────────────────────────────────────────────
##
## Call:  stats::glm(formula = ..y ~ ., family = stats::binomial, data = data)
##
## Coefficients:
##       (Intercept)   speciesChinstrap      speciesGentoo     bill_length_mm
##        -95.852333          -6.932255          -8.535185           0.633832
##     bill_depth_mm  flipper_length_mm        body_mass_g
##          2.014378           0.056401           0.006365
##
## Degrees of Freedom: 248 Total (i.e. Null);  242 Residual
## Null Deviance:	    345.2
## Residual Deviance: 85.49 	AIC: 99.49

Can we tidy it up? (We need [[1]] to get the element out as .workflow is a list.

penguins_final$.workflow[[1]] %>%
  tidy()
## # A tibble: 7 × 5
##   term               estimate std.error statistic     p.value
##   <chr>                 <dbl>     <dbl>     <dbl>       <dbl>
## 1 (Intercept)       -95.9      18.1        -5.30  0.000000115
## 2 speciesChinstrap   -6.93      1.91       -3.62  0.000295
## 3 speciesGentoo      -8.54      3.25       -2.63  0.00866
## 4 bill_length_mm      0.634     0.159       4.00  0.0000639
## 5 bill_depth_mm       2.01      0.455       4.43  0.00000940
## 6 flipper_length_mm   0.0564    0.0653      0.863 0.388
## 7 body_mass_g         0.00637   0.00138     4.63  0.00000374

The coefficients can be exponentiated to find the odds ratio.

penguins_final$.workflow[[1]] %>%
   tidy(exponentiate = TRUE) %>%
   arrange(estimate)
## # A tibble: 7 × 5
##   term              estimate std.error statistic     p.value
##   <chr>                <dbl>     <dbl>     <dbl>       <dbl>
## 1 (Intercept)       2.35e-42  18.1        -5.30  0.000000115
## 2 speciesGentoo     1.96e- 4   3.25       -2.63  0.00866
## 3 speciesChinstrap  9.76e- 4   1.91       -3.62  0.000295
## 4 body_mass_g       1.01e+ 0   0.00138     4.63  0.00000374
## 5 flipper_length_mm 1.06e+ 0   0.0653      0.863 0.388
## 6 bill_length_mm    1.88e+ 0   0.159       4.00  0.0000639
## 7 bill_depth_mm     7.50e+ 0   0.455       4.43  0.00000940

The coefficient of 3.75 means that for every one mm increase in bill depth, the odds of being male increases by almost eight times. So, bill depth is very important.

Flipper value are not very important. Remember that previously we explored the relationship between sex and flipper length. If flipper length is not important (high p-value), let’s see how the graph would look like with bill depth which is apparently very important.

penguins %>%
   filter(!is.na(sex)) %>%
   ggplot(aes(bill_depth_mm, bill_length_mm, colour = sex, size = body_mass_g)) +
   geom_point(alpha = 0.6) +
   facet_wrap(~species)

Conclusion

In this creating this short tutorial, I learnt how to classify data using tidymodels workflow with logistic regression and random forest. An important lesson was that logistic regression can outperform complicated trees like random forest too.


If you are interested in data science and R, check out my free weekly newsletter Next.

Next — Today I Learnt About R

A short and sweet curated collection of R-related works. Five stories. Four packages. Three jargons. Two tweets. One Meme.

You can read the past editions and subscribe to it here.

Posted on:
February 11, 2022
Length:
20 minute read, 4064 words
Categories:
R
See Also:
